Initial Setup
Installation
Supercell Wx can be downloaded from GitHub. Download the latest release from https://github.com/dpaulat/supercell-wx/releases.
Windows Setup
Minimum requirements: Windows 10 (1809 or later), Windows 11
Once downloaded, unzip the application to its own folder, and launch supercell-wx.exe from the bin folder. No installation is required, and all dependencies are self-contained.
Note
Installation of the Microsoft Visual C++ Redistributable may be required, provided in the bin folder (vc_redist.x64.exe).
Linux Setup
Minimum requirements:
x64: Linux/X11 with support for GCC 11 and OpenGL 3.3 (e.g., Fedora 34+, Ubuntu 22.04+, EndeavourOS, openSUSE Tumbleweed)
arm64: Linux/X11 with with support for GCC 11, OpenGL 3.3 and GLIBC 2.38 (e.g., Fedora 39+, Ubuntu 24.04+, EndeavourOS, openSUSE Tumbleweed)
Flatpak
The Linux Flatpak is the preferred way to run Supercell Wx on Linux. It runs Supercell Wx in a sandbox and bundles dependencies in order to run on a large number of Linux distributions without additional setup requirements.
To get started, download the appropriate file with the .flatpak extension.
# Install Flatpak via your Linux distribution's package manager
$ dnf install flatpak # e.g., Fedora
$ apt install flatpak # e.g., Ubuntu
$ zypper install flatpak # e.g., openSUSE
$ pacman -S flatpak # e.g., Arch Linux
# Add Flathub remote
$ flatpak remote-add --if-not-exists flathub https://flathub.org/repo/flathub.flatpakrepo
# Install Supercell Wx
$ flatpak install supercell-wx-<version>-linux-<arch>.flatpak
# Run Supercell Wx
$ flatpak run net.supercellwx.app
Alternatively, after installing the Supercell Wx Flatpak, you can now run the program from the desktop environment’s applications menu.
Note
If updating from AppImage or the Binary Release, you will need to migrate your settings manually, as the Flatpak does not have access to the original settings directory.
~/.local/share/Supercell Wx/~/.var/app/net.supercellwx.app/data/Supercell Wx/AppImage
The Linux AppImage is an alternative way to run Supercell Wx on Linux. It packages most required dependencies in order to run on a large number of modern Linux distributions without additional setup requirements.
To run the AppImage, download the appropriate file with the .AppImage extension, add executable permissions, and double-click the application or launch it from the command line.
Binary Release (tar.gz)
Supercell Wx uses Qt for its interface. The Qt libraries that Supercell Wx depend on are included in each release, but the Qt libraries may have additional dependencies that require manual installation.
In Fedora and Ubuntu, in addition to standard X11/XCB libraries, xcb-cursor must be installed. In openSUSE, a certificate workaround must be installed.
$ dnf install xcb-util-cursor # e.g., Fedora
$ apt install libxcb-cursor0 # e.g., Ubuntu
$ zypper install ca-certificates-steamtricks # e.g., openSUSE
Once downloaded, untar the application to its own folder, and launch supercell-wx from the bin folder.
Arm Architecture Notes
Many Arm hardware devices do not have full OpenGL 3.3 support. If you experience issues running Supercell Wx (OpenGL errors, a blank map pane, strange artifacts, or crashing), you may need to set a few environment variables for rendering to work properly on your system.
# Explicitly enable rendering using OpenGL 3.3
MESA_GL_VERSION_OVERRIDE=3.3
MESA_GLSL_VERSION_OVERRIDE=330
# Force software rendering (only if the above doesn't work, has impact on performance)
LIBGL_ALWAYS_SOFTWARE=1
macOS Setup
Minimum requirements:
Intel-based Mac: macOS 15.0+
Apple silicon-based Mac: macOS 14.0+
Once downloaded, to install the application:
Mount the Apple Disk Image (.dmg)
Drag Supercell Wx to Applications
Unmount and delete the Apple Disk Image
Supercell Wx may now be launched from the Applications folder.
Setup Wizard
The first time the application is launched, a setup wizard will appear. Follow the instructions displayed on the screen to configure the application for first use.
The Map Provider page displays first. Choose Mapbox, MapTiler, or OpenFreeMap.
For Mapbox or MapTiler, enter an API key after creating an account and reviewing terms of service. Create an API key (or public token) with default scopes (unless one is created for you). Click the button at the right side of the API Key input box to validate your API Key.
For OpenFreeMap, no API key is required. You can continue immediately or use Visit OpenFreeMap to read about free tiles and custom styles.

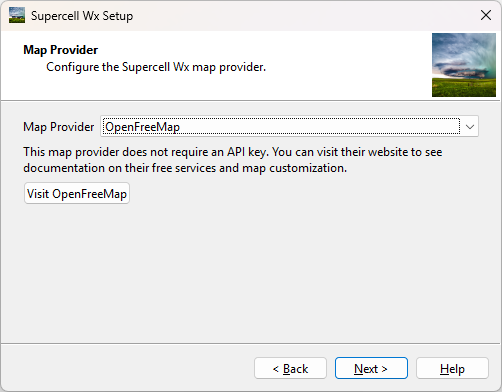

Setup wizard Map Provider page (Mapbox/MapTiler with API key, or OpenFreeMap with no API key).
Note
Both MapTiler and Mapbox offer free tiers. At the time of writing, Mapbox requires a credit card for sign-up, while MapTiler does not. OpenFreeMap is free and does not require sign-up.
Note
A blank map is used when no map source is configured.
Next, the Map Layout page displays. Here, the default display of a single map can be changed. The Map Layout can be configured as large as a 3x3 grid.
Configuration
If no map API key has been entered, a black screen will appear in place of the map. An API key can be reconfigured in settings, following the API key instructions above.
Using the menu, navigate to the Settings window using File > Settings.
Additional options can be configured in the Settings dialog as desired. Once complete, press OK and verify the map style in the Radar Toolbox.
Note
Some settings changes will require a restart (for example anti-aliasing).
Now that the application has been configured, it is ready for use.
Map Controls
Supercell Wx uses MapLibre Native Qt to render a responsive map.
To pan the map, left-click and drag the mouse. To rotate the map, right-click
and drag the mouse; rotation starts only after the pointer moves past the
system drag threshold, so a click without movement does not change bearing. To
reset the rotation to a north-up orientation, left-click the compass icon in the
upper right corner of the map. Use the mouse wheel to zoom, or double click using
the left or right mouse button to zoom in or out respectively. Pressing z
(configurable via hotkey settings) or both left and right mouse buttons will
cycle through map styles, including light, dark and satellite underlays.
Right-click a map pane for Link view (more than one pane), Pop-out, and Draw. See Multi-Pane Map Layout and Map Drawing.
For more information about the displayed radar product, hover over the time in
the upper right of the map. Hold the SHIFT key to view radar moment data or
other derived information underneath the cursor. Hold the CTRL key to
display a tick marker on each map pane indicating the current mouse location.
Customization
The map and radar display have multiple customization options, including color tables. The default color tables come from NOAA’s Weather and Climate Toolkit, but can be modified from the Palettes category in the Settings dialog. Color tables are compatible with the GRLevelX Color Table File Specification.
Additional color tables can be found at a number of sites, including:
https://grlevelxusers.com/grlevelx-goodies/categories/color-tables/
https://grx.almanydesigns.com/downloads/ (Color Table Format V3.0+ is not supported)
In addition to color tables, alert colors can also be modified. Use the text box to specify a color in ARGB hexadecimal format (#aarrggbb), or use the color picker to select a color.
